24.4mm Micro air pump DC 3.0-12.0V Title:
JSB370-G 24.4mm Micro Motor Water And Air Pump For Household Appliances, Medical Devices, Beauty Instruments, Aquarium Equipment
24.4mm Micro air pump DC 3.0-12.0V Description:
-
Rated Voltage range:DC3.0V-24V
-
Rated Speed:1000rpm-10000RPM
-
Motor Size: φ24.4*18mm,diamter 24.4mm ,18mm length mini motor
-
Suitable to small diameter, low noise and big torque application
-
Motor default direction:CW&CCW
-
Motor type :Brush dc motor
-
Brush type :Metal brush/Carbon brush
-
Motor shaft diameter :φ2.0mm
-
Can be match with wheel, One shaft one wheel or one motor, one wheel
-
Power:0-4.0 W
-
Pressure:0-130KPA
-
Water Flow:200-500mL/min Air Flow: 1.0-2.4L/min
Use environment:0~50°℃,75%RH
Suction head:＞2m
Lift of pump:＞20m
-
Working temperature:-40~+60°c
-
We can provide samples for your test.
-
Rotating speed is constant and can be made as you required.
-
Widely used in Washing Mobile Phones and Cleaning Equipment Water pump Air pump, Household appliances, medical devices, beauty instruments, aquarium equipment
24.4mm Micro air pump DC 3.0-12.0V Key Attributes:
Place of Origin
Guangdong, China
Model Number
24.4mm Air Pump motor
Use
Household appliances, medical devices, beauty instruments, aquarium equipment
Construction
Permanent Magnet
Protect Feature
Totally Enclosed Product Name
Micro Air Pump motor
Application
Home Appliance, medical devices, beauty instruments, aquarium equipment
Keywords
Micro Air Pump DC 6v
Motor type
24.4mm Mciro motor
24.4mm Micro air pump DC 3.0-12.0V Product Photo:

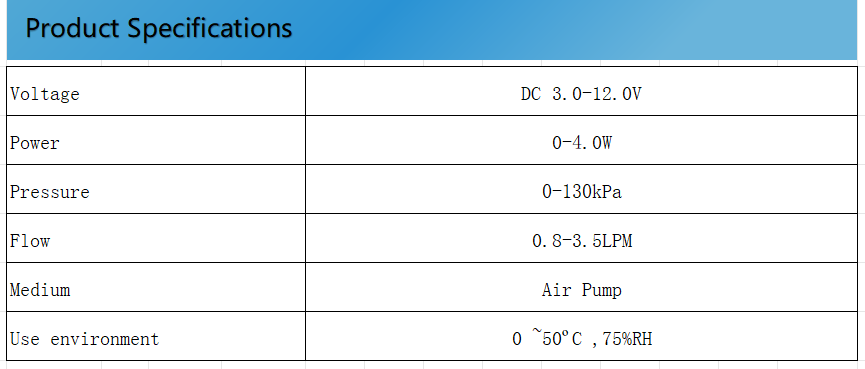

24.4mm Micro air pump DC 3.0-12.0V Product Spec:
Micro Air Pump Typical Applications
● Househdld Appliances:Air freshener,smartvacuumcleaner,soap dbperser,Water pump Air pump, Health care equipment, household appliances,medical equipment,beauty equipment,Washing Mobile Phones and Cleaning Equipment
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.
Packaging and delivery:
Packaging Details
Strong Carton 250pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
10.5kg
Supply Ability:
Supply Ability
100000 Piece/Pieces per Month
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
Maximum order quantity: 1piece
Sample price: $1.5/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
Q1:What's the price?
A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2:What's the MOQ? A2:We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
Q3:What's the delivery time? A3:At the first we have an schedule,the earlier you place order,the fater we finish the production. In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.
Q4:Can you make our logo on the products?
A4:Certainly,logo is easy as most of our products are customizable. So logo in usually logo is necessary.It can be labeled on the motors.
Q5: How to select a suitable motor?
A5: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
|
|
24.4mm Micro air pump DC 3.0-12.0V 0.8-3.5LPM Flow Air Pump for Health care equipment,medical equipment, beauty equipment Images
|
